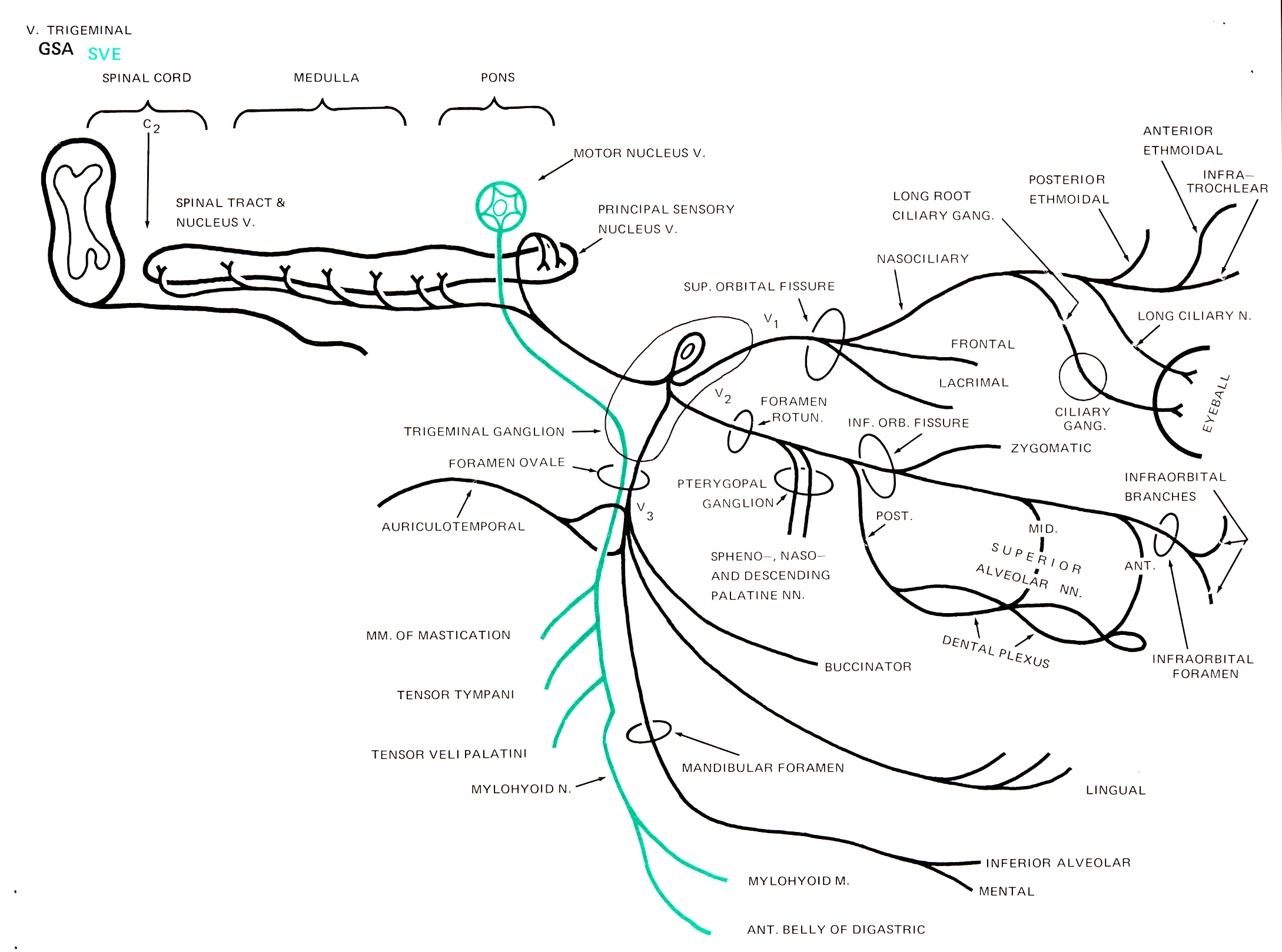

Trigeminal Nerve Schematic with Functional Components



*Right click on image and save to local file for full page printing from Word, Illustrator, etc.
